Steel / Fire / Security Doors
Door and Frame Specification:
Door features:
Fire doors tested with BS 476 P20&P22 and CE EN 1634-1:2000 fire resistant standard
All doors can be both exterior or interior used .Extra steel come with strong and trustable security protection.
Door frame fixed by 7-10 adjustable jacking screws. There are no door fixing holes shown when door closed. Frame inserted with fire rubber seal on all 4 side around can reduce noise, smoke, dust etc. single door completely flush surface but door leaf with 4 mm lip covered on the frame .Double door completely flush surface inside & outside but two door leaves with 4 mm lip covered on each other, in-active door leaf can be self locked by stainless steel flush bot..
Door Details
:Fire rating:1-4 hours fire rated Door leaf thickness:50 mm Door frame thickness:100 mm Door leaf skin steel:1.0-1.2 mm Galvanized steel attached with reinforced plate. Door frame steel:1.6-2.0 mm Galvanized steel attached with reinforced plate covered. Material in door leaf: fire insulated aluminium silicate wool attached with 3mm double fireproof resistant board .Material in frames: fire insulated rock wool with reinforced plate
.Extra reinforced plate: on the position for lock, panic bar, door closer etc. Threshold: 15 mm height made by stainless steel or galvanized finished. Or no threshold for interior use.
Steel door surface finish:
Finish: Powder coated .Standard colour: RAL 7016.Other colour: available for extra option.
Door sets weight:900 mm x 2100 mm door sets approx 95 kg.1000 mm x 2100 mm door sets approx 105 kg.1800 mm x 2100 mm door sets approx 175 kg.Standard hardwares
:Door Hinges: Heavy duty stainless steel fireproof hinges with anti-theft dog bolt. 4 hinges on each door leaf
.Receiver: Noise reduced & adjustable lock receiver.
Option hardwares:Key & Handle option: stainless steel lever handle & cylinder & thumb turn.
Panic Device option: panic push bar device.Key & handle features:top quality oval type fire proof sash lock with dead lockfire proof stainless steel lever handles fire proof stainless steel thumb turn & escutche on fire proof oval type 6 point cylinder blank key is available

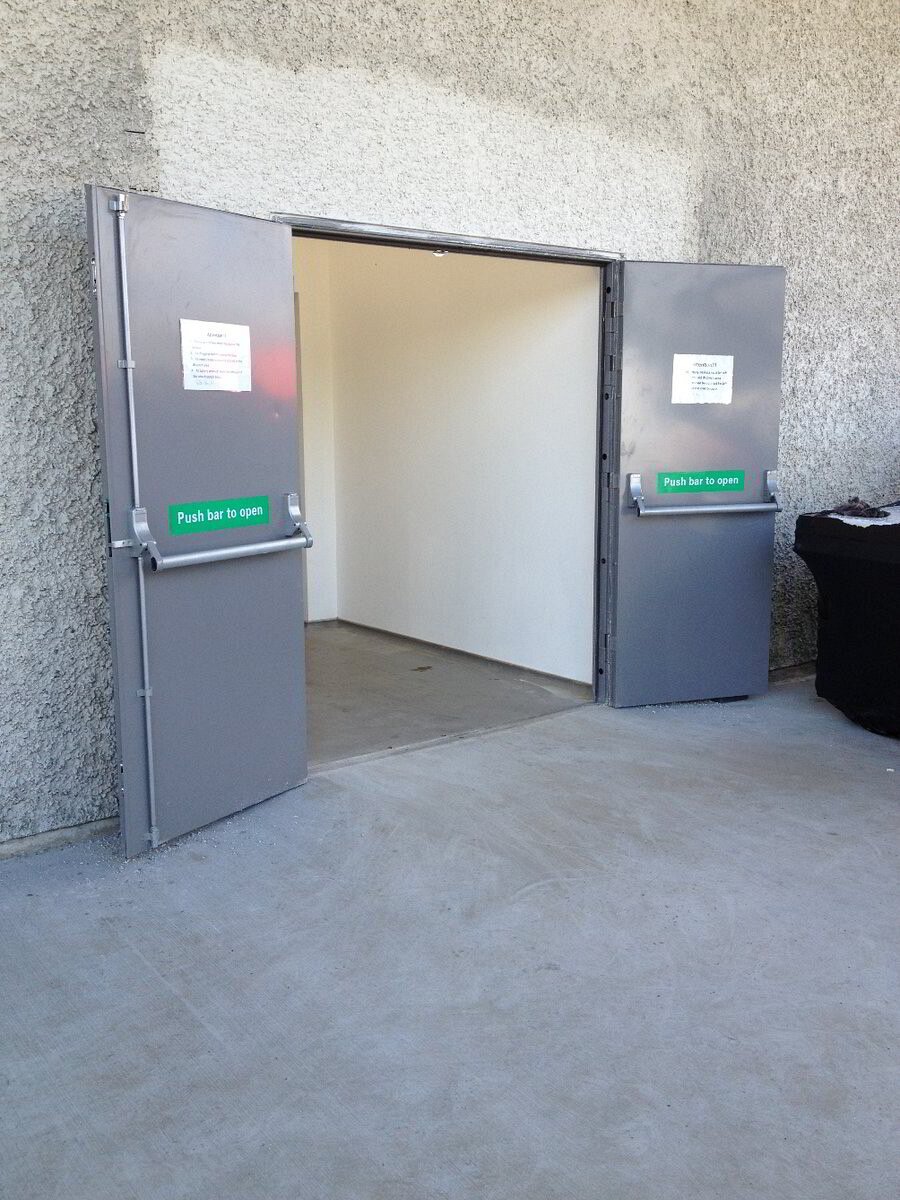

Panic device features
Panic latch with fire proof dead lock
Doors can be fitted with a panic latch with fire proof outside Access Master key system
Panic latch automatic lockable
Panic latch manually free lock the fire exit doors etc .For double fire exit door can be fitted with panic latch and panic bolt for fire exit.
Steel Doors & Security Doors Anti-Rust Coating
While steel is prone to corrosion and rust, galvanised steel offers higher degree of resistance against these elements. Steel may even be coated to prevent it from being exposed to air and moisture, which cause rust. When corrosion is a major concern and can undermine sanitation, stainless may be used instead.
There are different steel alloys available for steel doors and frames, and each has its own level of resistance against corrosion and rust, and each vary in strength, durability.
Steel Doors & Security Doors with Fire Resistance
Security doors with fire resistance (also known as fire shutters) facilitate the safe exit in case of fire. The security door is made of steel with enhanced resistance against fire, so it can be used to control or manage the damage by closing in various sections of the building or floor. Sectional shutters make it easy to allow exit of people and property, whilst keeping fire damage at a minimum.
Shutters and doors that offer fire protection are made according to specific industry standards. They pass through rigid tests in order to ensure they meet stringent requirements of insurance providers, as well as those end-users who are very particular about safety. Moreover, these fire-resistant steel doors and shutters are customisable to fit different dimensions of openings. Also, you have an option whether to have them in galvanised steel or powder-coated steel.
Steel Door Customisation and Prices
The Shutter Factory is able to build custom steel doors for your business premises or your home. Steels doors offer high levels of security for access points on your premises and help keep the intruders out.
Whatever your application we can engineer a door to meet your needs. It can be exterior steel doors, steel doors or security doors for home or heavy duty steel doors. Call us now for our competitive security steel door and security door prices.
